| COLOR: | Black matte |
| Maximum load Weight: | 150 kgs |
| Frame's material: | FM:TCMEJ-01 ,E-MTB Bike .Alloy-6061 T4-T6 ,M24"*C-T:320mm..eat Post:31.6,Inside.International Disc.Side-opening battery,QR.O.L.D:10*135mm/L. .BB-BB squeeze seat seat. Drop:40mm |

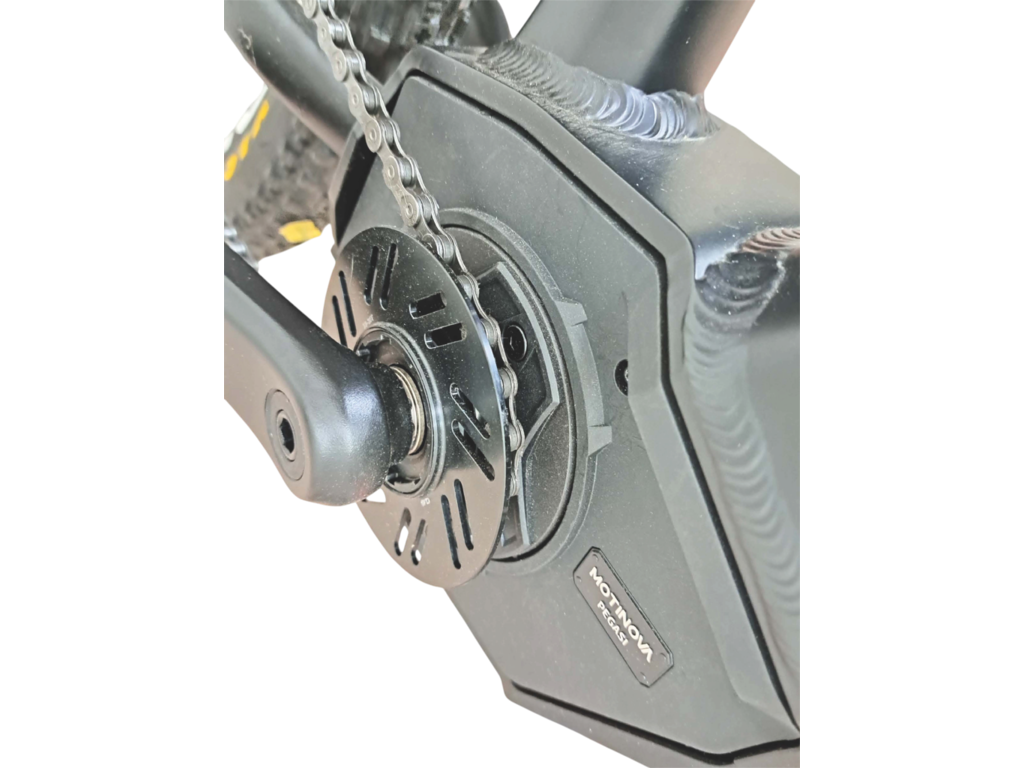

| Drive mode: | Power Mid Motor system |
| Moto | Model No.:PEGASI, Rated Voltage: moter, Rated Power: 250W, Max. drive torque: 80Nm Max. cadence with drive support: 110rpm Max. support up to: 25km/h Model No.: Pegasi,/Pegasi side cover:Material : PA+GF Model:side- assembly Finish: raw material, black color Model No.: MPV02,/ Bottom protector:Material :PA+GF Model:bottom- assembling Finish: raw material color:Black Model No.:MBP01, |
| Chainwheel | Crank arm set for ISIS spindle Material :PROWHEEL,PRO,Alloy 6061 Length: 170mm/L,JIS, BLACK , BLACKFC: 18T Model No.: TCW18A Lock |
| Cycle Computer | Model: CS500 Size: 3.2" Protocol: CAN,Certificate: CE / ROHS / IP54 |
| Battery: | BI50B,36V/14Ah, 504Wh, 36V/4A-US, |
| Charger : | charger: charger: 36V/4A .US regulations,,Battery:BI50B |
| Motor power: | 36V*250w,torque: 80Nm Max. cadence with drive support: 110rpm Max. |
| Safety configuration: | NIL |
| Suspension Fork : | FS-SID-RLT-A3 'FS SID RLT 2715SA100 WHT T RMT '27.5"'100MM 'TAPERED '15X100MM 'REMOTE,OE POPLOC FORK LEVER NON-ADJ LEFT |
| Handle Bar | Neo HB-XR 6.1 AL6061 Mountain BK 31.8*2.4*1.4 780L BLK TITANOS LOGO |
| Stem | Team Issue / UD, ST-OS-190/CW-UD, 90mm / 31.8mm / 28.6mm / ±6° / UD Carbon / Color Decal |
| Seat Post | Team Issue SB25 / UD, SP-SL-270/CW-UD, Ø31.6mm / 350mm / 20mm / UD Carbon / Color Decal |
| Saddle | S-4102BK, SATIN SILVER RAIL, W/AGOGO LOGO |
| Rear Derailleur | REAR DERAILLEUR, RD-M675, SLX SGS 10-SPEED TOP-NORMAL SHADOW PLUS DESIGN, DIRECT ATTACHMENT, BULK |
| Shift Lever: Right | SHIFT LEVER, SL-M670, SLX RIGHT 10-SPEED 2050MM INNER W/O OPTICAL GEAR DISPLAY, BULK |
| Wheel Set: Rim | FULCRUM ,RED POWER 27.5 C23 NEW Red Power 27,5 disc AFS F/2/ R/28 front HH15 - rear HH12/142 |
| Tire size: | MAXXIS,27.5X2.1 M309P Crossmark.Wire Bead TubeTire 60tpi WHITE MAXXIS LOGO |

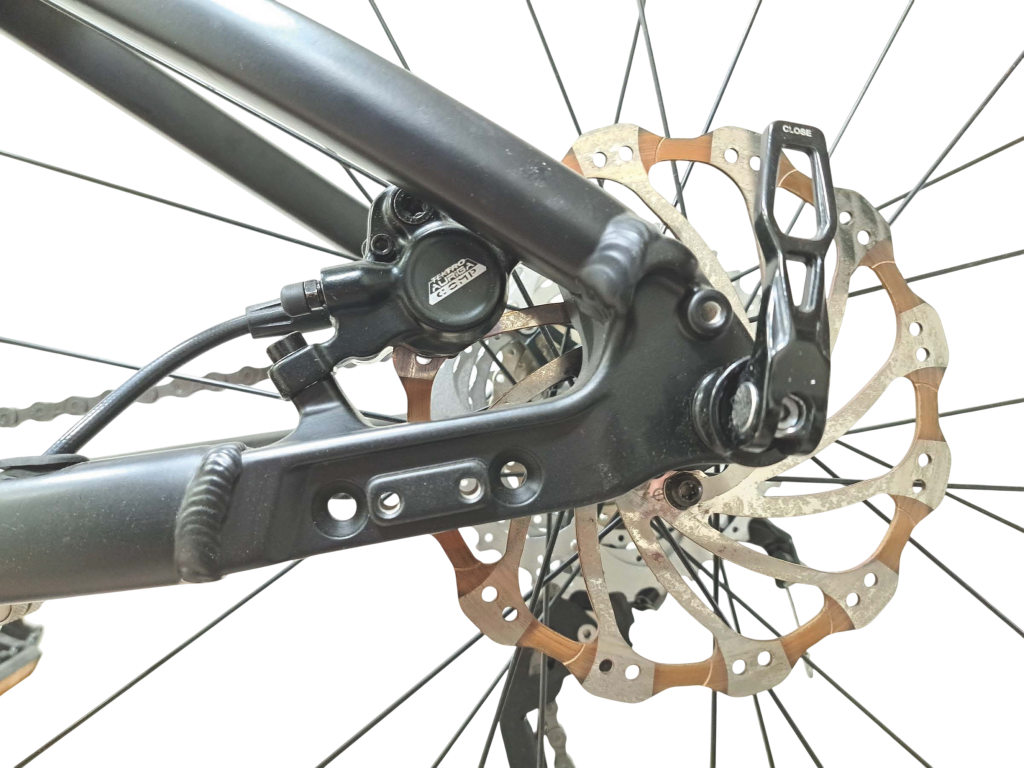

| Braking Set: | TEKTRO: AURIGA COMP 160mm L/F: 750L. POST MOUNT.Brake Rotor180 mm, hydraulic disc brakes |
| Cassette Sprocket | CASSETTE SPROCKET, CS-HG81-10, SLX 10-SPEED 11-13-15-17-19-21-24-28-32-36T (BK), BULK |
| Chain | BICYCLE CHAIN, CN-HG75 SUPER NARROW HG FOR MTB 10-SPEED 116 LINKS, W/END PIN, BULK |
| Maximum speed: | 25 km/h |
| Frame : FM:TCMEJ-01 ,E-MTB Bike .Alloy-6061 T4-T6 ,M24"*C-T:320mm..eat Post:31.6,Inside.International Disc.Side-opening battery,QR.O.L.D:10*135mm/L. .BB-BB squeeze seat seat. Drop:40mm | Drive mode: : Power Mid Motor system |
| Motor power: : 36V*250w,torque: 80Nm Max. cadence with drive support: 110rpm Max. | Crankset : Crank arm set for ISIS spindle Material :PROWHEEL,PRO,Alloy 6061 Length: 170mm/L,JIS, BLACK FC: 18T Model No.: TCW18A Lock |
| Battery: : BI50B,36V/14Ah, 504Wh, 36V/4A-US, | Charger : : charger: charger: 36V/4A .US regulations,,Battery:BI50B |
| Fork : FS-SID-RLT-A3 'FS SID RLT 2715SA100 WHT T RMT '27.5"'100MM 'TAPERED '15X100MM 'REMOTE,OE POPLOC FORK LEVER NON-ADJ LEFT | Handle Bar : Neo HB-XR 6.1 AL6061 Mountain BK 31.8*2.4*1.4 780L BLK TITANOS LOGO |
| Stem : Team Issue / UD, ST-OS-190/CW-UD, 90mm / 31.8mm / 28.6mm / ±6° / UD Carbon / Color Decal | Seat Post : Team Issue SB25 / UD, SP-SL-270/CW-UD, Ø31.6mm / 350mm / 20mm / UD Carbon / Color Decal |
| Saddle : S-4102BK, SATIN SILVER RAIL, W/AGOGO LOGO | Rear Derailleur : REAR DERAILLEUR, RD-M675, SLX SGS 10-SPEED TOP-NORMAL SHADOW PLUS DESIGN, DIRECT ATTACHMENT, BULK |
| Shift Lever: Right : SHIFT LEVER, SL-M670, SLX RIGHT 10-SPEED 2050MM INNER W/O OPTICAL GEAR DISPLAY, BULK | Wheel Set: Rim : FULCRUM ,RED POWER 27.5 C23 NEW Red Power 27,5 disc AFS F/2/ R/28 front HH15 - rear HH12/142 |
| Tire : MAXXIS,27.5X2.1 M309P Crossmark.Wire Bead TubeTire 60tpi WHITE MAXXIS LOGO | Brake : TEKTRO: AURIGA COMP 160mm L/F: 750L. POST MOUNT.Brake Rotor180 mm, hydraulic disc brakes |
| Cassette Sprocket : CASSETTE SPROCKET, CS-HG81-10, SLX 10-SPEED 11-13-15-17-19-21-24-28-32-36T (BK), BULK | Chain : BICYCLE CHAIN, CN-HG75 SUPER NARROW HG FOR MTB 10-SPEED 116 LINKS, W/END PIN, BULK |
| Motor : "Model No.:PEGASI, Rated Voltage: moter, Rated Power: 250W, Max. drive torque: 80Nm Max. cadence with drive support: 110rpm Max. support up to: 25km/h Model No.: Pegasi,/Pegasi side cover:Material : PA+GF Model:side- assembly Finish: raw material, black color Model No.: MPV02,/ Bottom protector:Material :PA+GF Model:bottom- assembling Finish: raw material color:Black Model No.:MBP01," |
