| COLOR: | Black matte |
| Maximum load Weight: | 150 kgs |
| Frame's material: | FM:TCMEJ-01 ,E-MTB Bike .Alloy-6061 T4-T6 ,M24",C-T:320mm.Seat Post:31.6,Clamp:34.9,QR.O.L.D:10*135mm/L. .Moto BB-squeeze seat. |
| Drive mode: | power assist, electric,Rear wheel |

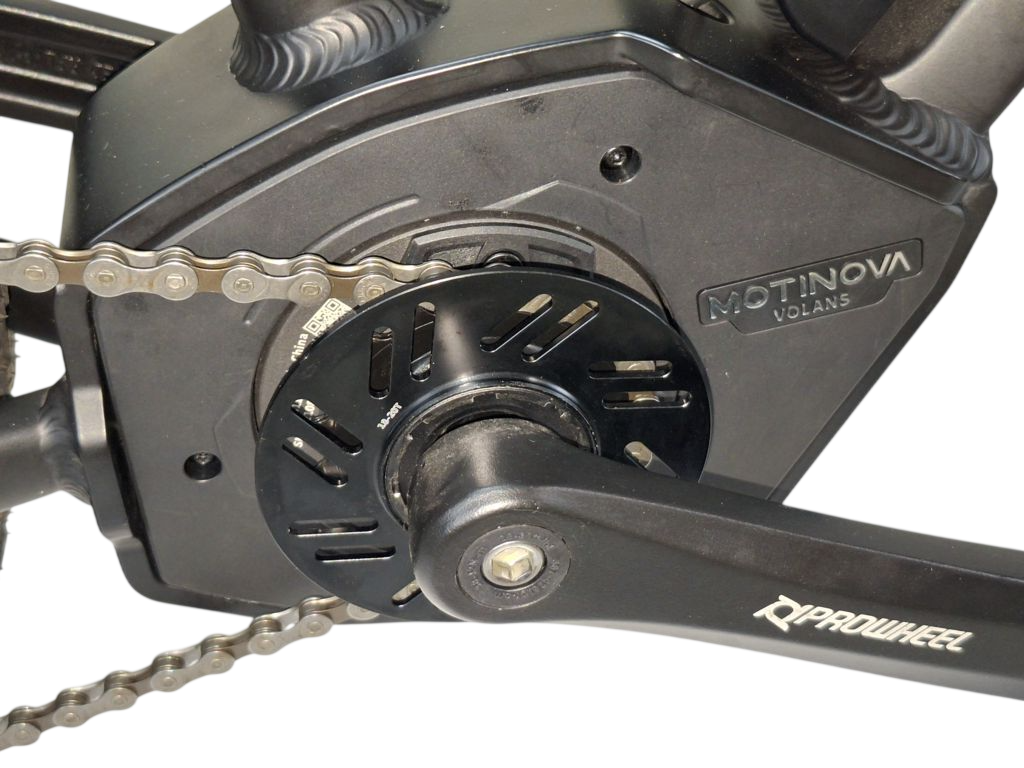

| Moto | Model No.: Volans Series moter, Rated Power: 250W, Rated Voltage: 36V , Max. drive torque: 65Nm, Max. cadence : 100rpm ,PAS Level O.SPORT.NORM.ECO.OFF,Max. support up to: 25km/h , Smart Mode: Mes, Bottom Bracket: Jis Square |
| Chainwheel | FC:TCW18A/T,Lock Nut:M32 Lock nut,chainwheel:18T |

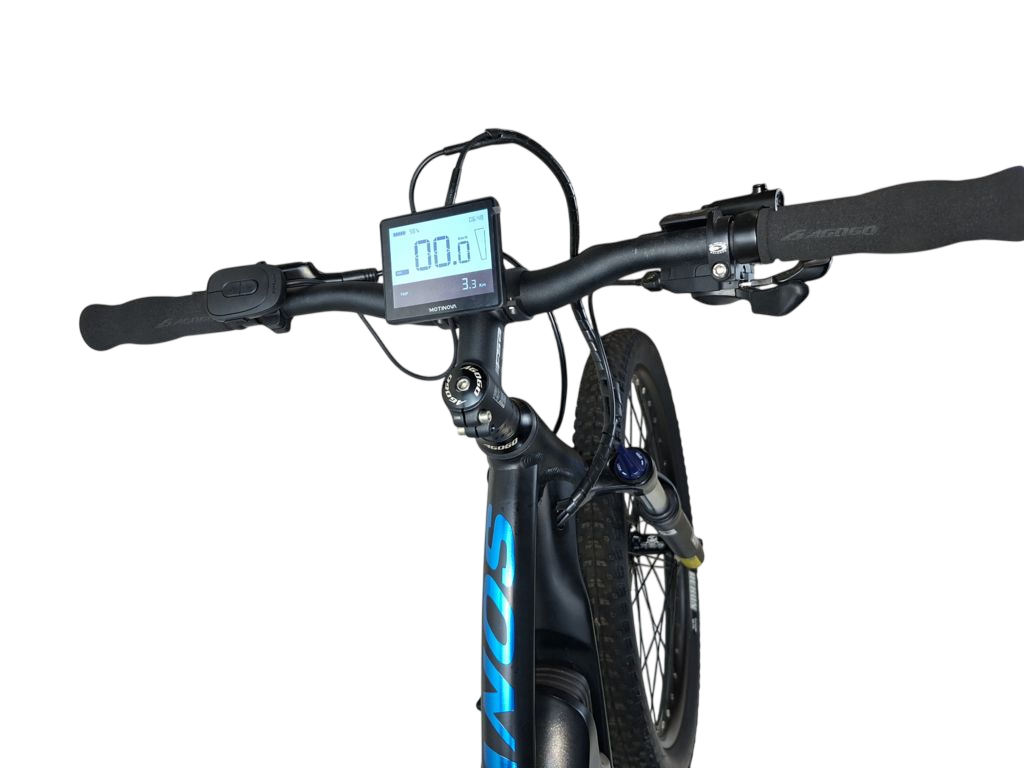

| Display: | CTM-10U-UBO ,single button,BLE,FB-Z5712AM-150,NON |
| Battery: | TCMEJ-01,36V/10.4Ah, 374Wh,Battery:BD46B, 36V/2A-USD |
| Charger : | charger: 36V/2A-USD .US regulations,,Battery:B046B |
| Motor power: | 36V*350w |
| Safety configuration: | NIL |
| Suspension Fork : | XCT-JR-L HLO DS 24",Casual MTB,1-1/8",24"x2.1",COIL w/Preload adjuster ,Cr-plating,LOCK |
| Gear: SL , RD | Shimano 1*9 speed,Deore |
| Wheel Set: Rim | Double frame,Rrin:24"W30*H20*13#,24"*36h,ED, 13#*Stainless steel-BLK*13# copper cap,Disc,6-Hole,F:100*R:135-QR |
| Tire size: | MAXXIS,24"*2.0, M349P, REKON, E-25 , 24x2.0,REKON,60TPI |
| Braking method: | Shimano,MT201, Front and rear, hydraulic disc brakes |
| Cassette Sprocket | CASSETTE SPROCKET, CS-HG61, 9-SPEED 11-13-15-17-20-23-26-30-34T(AU) BULK |
| Chain | BICYCLE CHAIN, CN-HG54 SUPER NARROW HG FOR MTB 10-SPEED 110 LINKS, W/END PIN, BULK |
| Maximum speed: | 25 km/h |
| Frame : FM:TCMEJ-01 ,E-MTB Bike .Alloy-6061 T4-T6 ,M24",C-T:320mm.Seat Post:31.6,Clamp:34.9,QR.O.L.D:10*135mm/L. .Moto BB-squeeze seat. | Drive mode: : power assist, electric,Rear wheel |
| Motor power: : 36V*350w | Crankset : FC:TCW18A/T,Lock Nut:M32 Lock nut,chainwheel:18T |
| Display: : CTM-10U-UBO ,single button,BLE,FB-Z5712AM-150,NON | Battery: : TCMEJ-01,36V/10.4Ah, 374Wh,Battery:BD46B, 36V/2A-USD |
| Charger : : charger: 36V/2A-USD .US regulations,,Battery:B046B | Fork : XCT-JR-L HLO DS 24",Casual MTB,1-1/8",24"x2.1",COIL w/Preload adjuster ,Cr-plating,LOCK |
| Gear : Shimano 1*9 speed,Deore | Wheel Set: Rim : Double frame,Rrin:24"W30*H20*13#,24"*36h,ED, 13#*Stainless steel-BLK*13# copper cap,Disc,6-Hole,F:100*R:135-QR |
| Tire : MAXXIS,24"*2.0, M349P, REKON, E-25 , 24x2.0,REKON,60TPI | Brake : Shimano,MT201, Front and rear, hydraulic disc brakes |
| Cassette Sprocket : CASSETTE SPROCKET, CS-HG61, 9-SPEED 11-13-15-17-20-23-26-30-34T(AU) BULK | Chain : BICYCLE CHAIN, CN-HG54 SUPER NARROW HG FOR MTB 10-SPEED 110 LINKS, W/END PIN, BULK |
| Motor : Model No.: Volans Series moter, Rated Power: 250W, Rated Voltage: 36V , Max. drive torque: 65Nm, Max. cadence : 100rpm ,PAS Level O.SPORT.NORM.ECO.OFF,Max. support up to: 25km/h , Smart Mode: Mes, Bottom Bracket: Jis Square |
