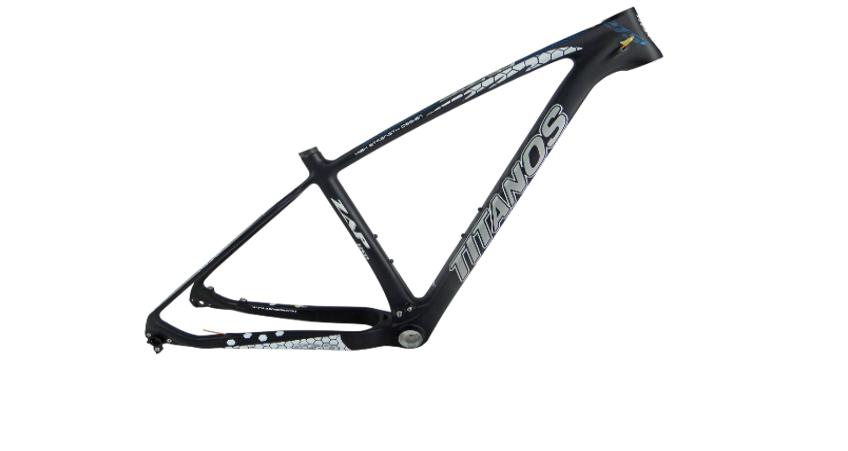

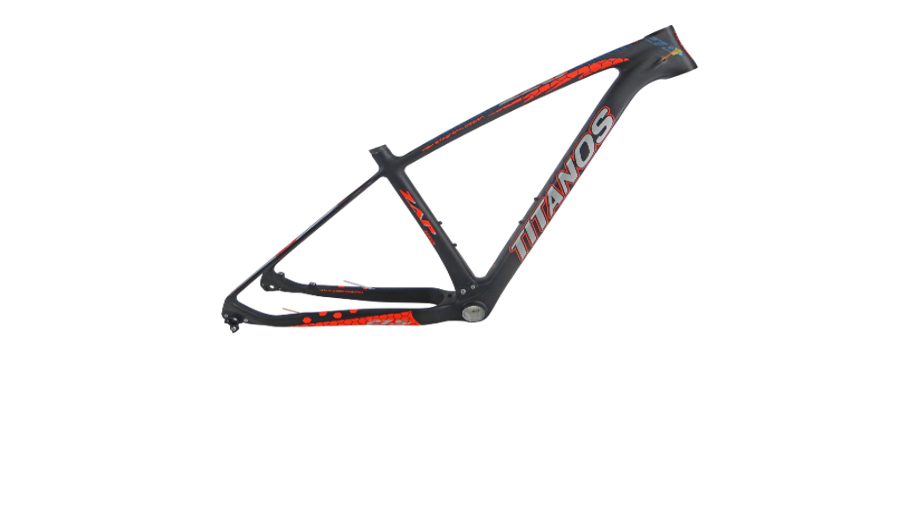

| Frame | Carbon MTB Frame FM-27.5+ X1,C-T 17.5"UD 1.5"TAPERED ,FD/Direct Mount ,￠31.6mm/BB-92 QR/135mm/L,OLD2mm/148mm/L RC440mm/L Fork : 11/8"*1.5"TAPERED*Travel:506mm/L-offset 45 |
| Fork | 2016, 32, K, FLOAT, 29in, F-S, 100, 3Pos-Adj, FIT4, Met. Blk, Orange Logo, 15QRx110, 1.5 T, 44mm Rake, OE |
| Handle Bar | X-Zenith / HB-XF1.0SL, UD Carbon Flat Bar - Super Light Version, 31.8x800mm • Red Decal |
| Stem | AS025 3D AL6061 ULTRA LIGHT WEIGHT STEM, 2014 TWO-PIECE FACEPLATE,OSC(MESH FIT II),+/7°,EXT.80/90/100/110/120/130. DIA. 31.8mm. |
| Seat Post | X-Zenith / SP-XS1.0SL, UD/RED Carbon Seat Post,31.6*350mm/L 0 degree/OFFSET |
| Saddle | Speed V Sport SE, STEEL RAIL, Classic Cut Pattern: High Padding, Black vinyl cover, Black ABR corners |
| Front Derailleur | |
| Rear Derailleur | REAR DERAILLEUR,RD-M8000,DEORE XT, GS 11-SPEED TOP-NORMAL SHADOW PLUS DESIGN, DIRECT ATTACHMENT(DIRECT MOUNT COMPATIBLE), IND.PACK |
| Shift Lever Sst : | SHIFT LEVER, SL-M8000, DEORE-XT,RIGHT: 11-SPEED, W/ O.G.D, 2050MM INNER BLACK SP41 SEALED OUTER(1880MM), ADD 6MMSEALED CAP X3 AND NOSE CAP X1, IND.PACK |
| Brake Lever: | DISC-BRAKE ASSEMBLED SET, BL-M396L(R), BR-M395L/BL- M8000(L), BR-M8000(F) W/ADAPTER FOR STANDARD |
| Disc Rotor F/R | ASSY DB ROTOR/ 6 BOLTS HSX 180 |
| Cranketset | AL-7075 32T. BCD 104mm * AL175mm/L For148 OLD PressFit BB-92 , BB: PressFit BB-92 |
| Cassette Sprocket | CASSETTE SPROCKET,CS-M8000,DEORE XT, 11-SPEED, 11-13-15-17-19-21-24-28-32-37-42, IND.PACK |
| Chain | BICYCLE CHAIN, CN-HG700-11, FOR 11-SPEED (ROAD/MTB COMPATIBLE), 116 LINKS, W/O END PIN, W/AMPOULE TYPE CONNECT PIN X1, IND.PACK |
| Wheel Set: | TL-29 650B W38*32H BLK,TITANOS XX63 F:15*OLD110mm/L32H.R:12*OLD148*32H blk FOR:SHIMANO11SP, Spoke- PSR2018BLK |
| Tire | 27.5 X3.00 M335 120tpi Folding TLR EXO |
| Axle / Skewer ,QR | QR-XX2.2 12mm*OLD/148mm *P1.5 AL7075 360Degree China is empty/Lever US:13/21415 TAIWAN:100214698 79g Lever Color/RED |
| Frame : Carbon MTB Frame FM-27.5+ X1,C-T 17.5"UD 1.5"TAPERED ,FD/Direct Mount ,￠31.6mm/BB-92 QR/135mm/L,OLD2mm/148mm/L RC440mm/L Fork : 11/8"*1.5"TAPERED*Travel:506mm/L-offset 45 | Fork : 2016, 32, K, FLOAT, 29in, F-S, 100, 3Pos-Adj, FIT4, Met. Blk, Orange Logo, 15QRx110, 1.5 T, 44mm Rake, OE |
| Handle Bar : X-Zenith / HB-XF1.0SL, UD Carbon Flat Bar - Super Light Version, 31.8x800mm • Red Decal | Stem : AS025 3D AL6061 ULTRA LIGHT WEIGHT STEM, 2014 TWO-PIECE FACEPLATE,OSC(MESH FIT II),+/7°,EXT.80/90/100/110/120/130. DIA. 31.8mm. |
| Seat Post : X-Zenith / SP-XS1.0SL, UD/RED Carbon Seat Post,31.6*350mm/L 0 degree/OFFSET | Saddle : Speed V Sport SE, STEEL RAIL, Classic Cut Pattern: High Padding, Black vinyl cover, Black ABR corners |
| Rear Derailleur : RD-M8000,DEORE XT, GS 11-SPEED TOP-NORMAL SHADOW PLUS DESIGN, DIRECT ATTACHMENT(DIRECT MOUNT COMPATIBLE), IND.PACK | Shift Lever : SL-M8000, DEORE-XT,RIGHT: 11-SPEED, W/ O.G.D, 2050MM INNER BLACK SP41 SEALED OUTER(1880MM), ADD 6MMSEALED CAP X3 AND NOSE CAP X1, IND.PACK |
| Brake Lever (F/R) : DISC-BRAKE ASSEMBLED SET, BL-M396L(R), BR-M395L/BL- M8000(L), BR-M8000(F) W/ADAPTER FOR STANDARD | Disc Rotor : ASSY DB ROTOR/ 6 BOLTS HSX 180 |
| Crankset : AL-7075 32T. BCD 104mm * AL175mm/L For148 OLD PressFit BB-92 , BB: PressFit BB-92 | Cassette Sprocket : CASSETTE SPROCKET,CS-M8000,DEORE XT, 11-SPEED, 11-13-15-17-19-21-24-28-32-37-42, IND.PACK |
| Chain : CN-HG700-11, FOR 11-SPEED (ROAD/MTB COMPATIBLE), 116 LINKS, W/O END PIN, W/AMPOULE TYPE CONNECT PIN X1, IND.PACK | Wheels : TL-29 650B W38*32H BLK,TITANOS XX63 F:15*OLD110mm/L32H.R:12*OLD148*32H blk FOR:SHIMANO11SP, Spoke- PSR2018BLK |
| Tire : 27.5 X3.00 M335 120tpi Folding TLR EXO | Quick Release : QR-XX2.2 12mm*OLD/148mm *P1.5 AL7075 360Degree China is empty/Lever US:13/21415 TAIWAN:100214698 79g Lever Color/RED |
