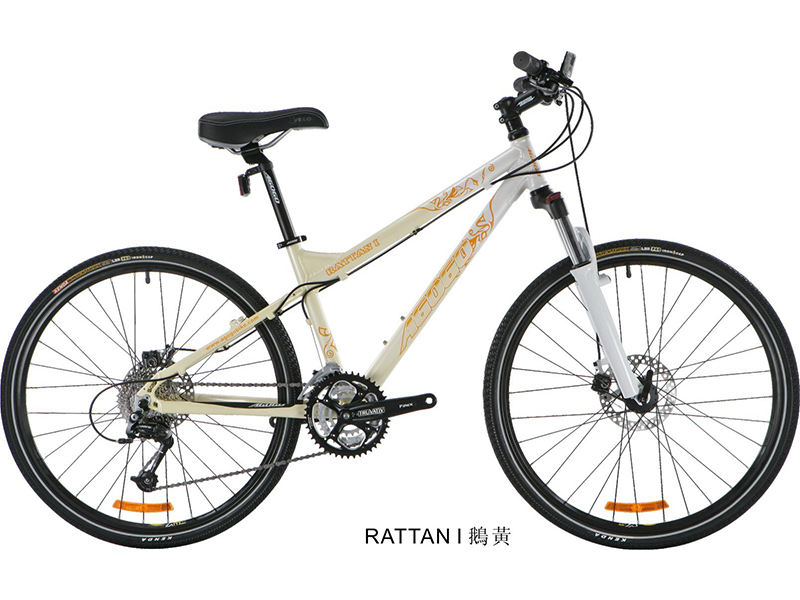

Complete Bike MTB

RATTAN

Features
∙ Suitable for commuter or sport enthusiast
∙ Outstanding head tube shape by CNC machined
∙ Equipped with Shimano 11-34 ration Teeth,
energy-saving when mountain climbing
∙ Kenda K-1029 tire with reflector strip
∙ Shimano crank, brake/shift lever, front/rear derailleur

Color Optional
∙ Pearl White/Light Pink   ∙ Pearl White/Light Blue

PRODUCT DETAILS

Frame : RATTAN, Alloy 6061, 26"*15'' & 17''---(AGOGO) Fork : CAPA T8 With ML---(RST)
Stem : ST-601AL---(AGOGO) Handle Bar : HB-M24102AL---(AGOGO)
Grip : HY-110-3---(Prcpaim) Head Parts : HP-288MT ---(AGOGO)
Crankset : FC-M191, 24-34-42T, 170mm---(SHIMANO) Bottom Bracket : SQT-12, 68/116L---(VORTEX)
Chain : HG-40---(KMC) Tire : K-1029, 26"x1.50", 2RT---(KENDA)
Wheel: Hub(F/R) : B-731 / B-801---(AGOGO) Wheel Set: Rim : MX-4 ---(KINLIN)
Wheel Set: Spoke : 14#, Stainless Steel, Black---(SHADAR) Seat Post : SP-243AL---(AGOGO)
Seat Post QR : SQ-600AL---(AGOGO) Brake Lever (F/R) : ST-EF60-L / ST-EF60-8R---(SHIMANO)
Brake : 836AL---(TEKTRO) Disc Rotor : NIL
Shift Lever: Left : ST-EF60-L---(SHIMANO) Shift Lever: Right : ST-EF60-8R---(SHIMANO)
Front Derailleur : FD-M190---(SHIMANO) Rear Derailleur : RD-M360-L---(SHIMANO)
Cassette Sprocket : CS-HG30-8I, 8 SPEED, 11-34T---(SHIMANO) Pedal : VP-990S---(VP COMPONENT)
Kickstand : NH-FK26SS-1---(NUVO) Saddle : S-3028BK, Satin Silver Rail---(AGOGO)
