Complete Bike MTB

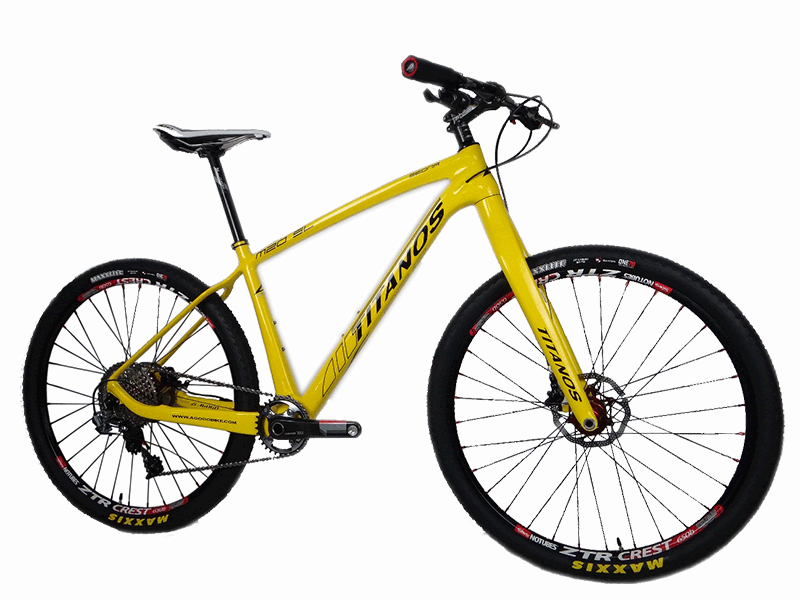

M20SL XX1

PRODUCT DETAILS

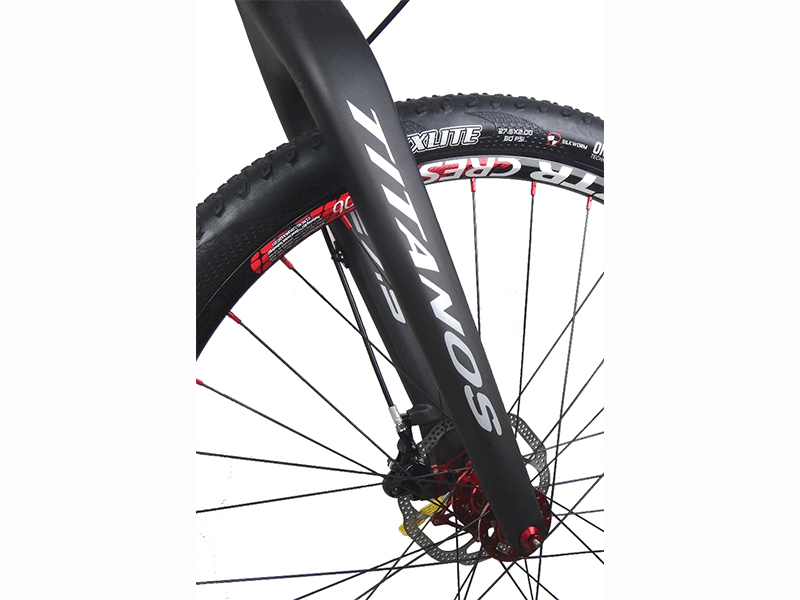

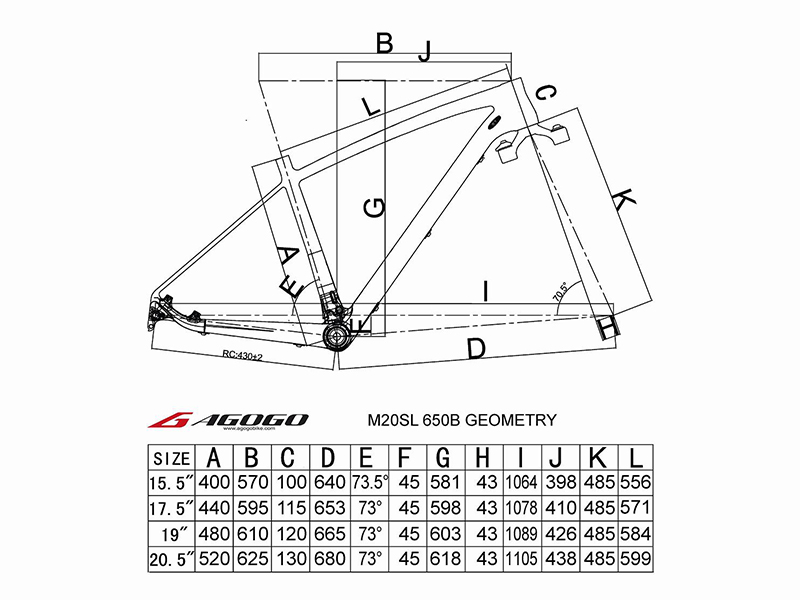

Frame : Carbon MTB Frame FM-650B M13,C-T 17.5"UD 1.5"TOP,FD/Direct Mount ,¢27.2mm/BB-92 QR/135mm/L,or12mm/142mm/L---(AGOGO) Fork : 27.5" Carbon 11/8'*1.5'*AC485mm/L.9mmQR*100mm,ID22.2*OD28.6mm---(AGOGO)
Head Parts : HP-XS3.0AL, For 1-1/8"*1.5"TOP steerer, 42mm/52mm OD head tube, 36°x45° ACB Bearing (Blue Seal), alloy wrapped top cover, stack height: 48mm*H/15mm---(AGOGO) Star Nuts : SC-002-BK, Alloy 6061T6, Cap: Alloy, 32mmL, Black, W/AGOGO Logo---(AGOGO)
Head Parts Spacer : X-Zenith / R1.0, 3K CARBON, CLEAR COAT, OD.35mmx ID.28. 8mm x 10mmH, SILVER AGOGO LOGO---(AGOGO) Handle Bar : X-Zenith / HB-XR1.0SL, UD Carbon Riser Bar - Super Light Version 31.8x660mm---(AGOGO)
Stem : X-Zenith / ST-XS1.0SL, UD.MAT.31.8*90L Carbon Stem, Carbon Faceflate Red---(AGOGO) Seat Post : X-Zenith / SP-XS1.0SL, UD Carbon Seat Post,31.6*350mm/L 0 degree---(AGOGO)
Saddle : WCS STREEM V2, WCS, Leather, Nylon + CF Shell ,Hollow Titanium Rail , WHITE---(RITCHEY) Seat Post QR : SC-XS3.0, AL7075T6 Full CNC-machined, Titanium Bolts, W/AGOGO Logo, 9.5g / 31.8mm---(AGOGO)
Grip / Tape : 20mm*125mm*NBR-30% RED---(AGOGO) Rear Derailleur : REAR DERAILLEUR XX1 RED '11S 'CARBON---(SRAM)
Shift Lever: Right : MMX CLAMP BLK RIGHT STAINLESS BOLT---(SRAM) Shift Lever: Left : XX1 TRIGGER 11 SPEED RED---(SRAM)
Brake Lever: Right : DB XX OBK FRT DIR 800 'DB XX OBK FRT DIR 750 'GLOSS BLACK 'CARBON 'TITANIUM 'CLAMPS (DB-ACC-) AND ROTORS (RT-) MUST BE ORDERED SEPERATELY---(SRAM) Brake Lever: Left : DB XX OBK RER DIR 1450 'DB XX OBK FRT DIR 750 'GLOSS BLACK 'CARBON 'TITANIUM 'CLAMPS (DB-ACC-) AND ROTORS (RT-) MUST BE ORDERED SEPERATELY---(SRAM)
Brake : Front : XX CLAMP LEFT BLACK FOR MATCHMAKER (MMX)---(SRAM) Brake : Rear : XX CLAMP RIGHT BLACK FOR MATCHMAKER (MMX)---(SRAM)
Disc Rotor : ASSY DB ROTOR/BOLTS HSX 160 RED TI---(SRAM) Cranketset : FC XX1 Q156 PF 175 RED 32 PRESSFIT (MTB: 89/91.5MM) 'CERAMIC 11S RED RED---(SRAM)
Cassette Sprocket : XX1 CS 'XG 1199 10-42 '10-42 11 SPEED X GLIDE CASSETTE 'SILVER---(SRAM) Chain : Chain PC XX1, 118 Links with Power Lock, 11 speed, 50 Pieces 'SILVER---(SRAM)
Tire : 27.5 X2.00 M324 170TPI, FOLDING. SILKWORM (360g)---(MAXXIS) Tire tube : 27.5X1.9/2.35 FV32 <nu>OEM MAXXIS---(MAXXIS)
O.B. Rim Tape : HIGH PRESSURE---(AGOGO) Wheel Set: Rim : WH-ZTR650B ZC XX4.3, Mountain Wheelset, 27.5", ZTR CREST Rim, F/R: 32 Holes, XB-XX4.3 Hub, Pillar PDB-1415 Spokes,•Rim: Black•Hub:Red•Nipple:Red•Spoke:Black---(AGOGO)
