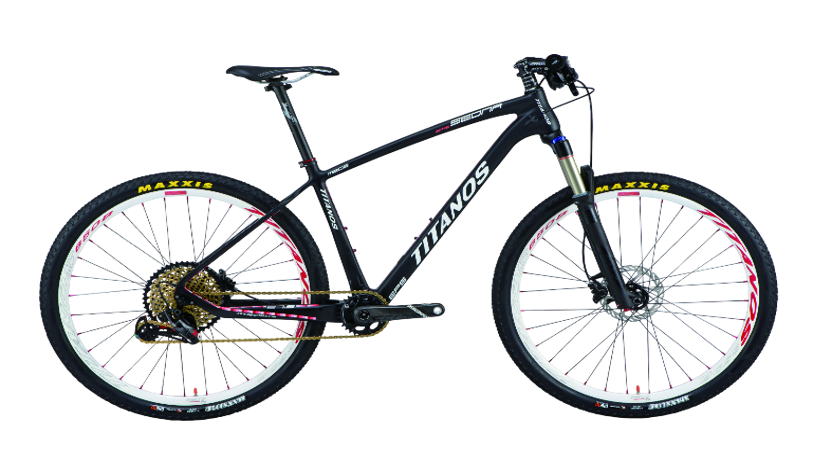

| Frame | TITANOS Carbon MTB Frame FM-29ER M19,C-T 15.5"UD/Green 1.5"TOP,BB/PF-30 QR/135mm/L or12mm/142mm/L |
| Fork | FS RCNG RL 27 S15 SA 100 DFBS T |
| Handle Bar | TITANOS X-Zenith / HB-XF3.0 UD Carbon Flat Bar - Super Light Version, 31.8x9º *740mm green Decal |
| Stem | TITANOS X-NEO/ST-XS1.7 AL6061 3D AL6061 ULTRA LIGHT WEIGHT STEM, 2014 TWO-PIECE FACEPLATE,OSC(MESH FIT II) BLK +/7°,EXT.90* DIA. 31.8mm. |
| Seat Post | X-Zenith / SP-XS3.0SL, UD/RED Carbon Seat Post,31.6*350mm/L / 0 degree/OFFSET |
| Saddle | S-4102BK, SATIN SILVER RAIL, W/AGOGO LOGO |
| Front Derailleur | |
| Rear Derailleur | RD X01 EAGLE RED 12SP |
| Shift Lever: Right | SL X01 EAGLE TRIGGER RED 12SP Trigger 2200 |
| Brake Lever: | DB LVLTL HI GLB FRT 20S /DB LVLTL HI SJ GLB RER 20S |
| Disc Rotor F/R | ASSY DB ROTOR/BOLTS G2CS F:180/ R:160 |
| Cranketset | FC DESCENDANT CARBON EAGLE TECHNOLOGY 24MM 175MM BLACK 30TOOTH |
| Bottom Bracket | BB PRESSFIT MTB PressFit (MTB: 89/91.5mm) |
| Cassette Sprocket | CS XG 1299 EAGLE 10-50T 12s GOLD |
| Chain | CN XX1 EAGLE GOLD 116LINK POWERLOCK 12SPEED 50PIECES |
| Wheel Set: | X-Neo / WH-XX5.0a(650b)BK Freehub for SRAM XX1, Mountain Wheelset, 650b", TL-21 650b Rim, F/R: 32 Holes, XB-XX4.3 Hub/RED, Pillar PSR2015 Spokes, Skewer: QR-XX6.0 (Red), 1742g / per set (Front + Rear), • Rim: Black • Hub: Red • Nipple: Red • Spoke: Black |
| Tire | 27.5 X2.00 M324 170TPI, FOLDING. SILKWORM (360g) |
| Axle / Skewer ,QR | QR-XX2.1 12mm*OLD/142mm *P1.5 AL7075 360Degree Lever US:13/21415 TAIWAN:100214698 79g Lever Color/BLACK |
| Frame : TITANOS Carbon MTB Frame FM-29ER M19,C-T 15.5"UD/Green 1.5"TOP,BB/PF-30 QR/135mm/L or12mm/142mm/L | Fork : FS RCNG RL 27 S15 SA 100 DFBS T |
| Handle Bar : TITANOS X-Zenith / HB-XF3.0 UD Carbon Flat Bar - Super Light Version, 31.8x9º *740mm green Decal | Stem : TITANOS X-NEO/ST-XS1.7 AL6061 3D AL6061 ULTRA LIGHT WEIGHT STEM, 2014 TWO-PIECE FACEPLATE,OSC(MESH FIT II) BLK +/7°,EXT.90* DIA. 31.8mm. |
| Seat Post : X-Zenith / SP-XS3.0SL, UD/RED Carbon Seat Post,31.6*350mm/L / 0 degree/OFFSET | Saddle : S-4102BK, SATIN SILVER RAIL, W/AGOGO LOGO |
| Rear Derailleur : RD X01 EAGLE RED 12SP | Shift Lever: Right : SL X01 EAGLE TRIGGER RED 12SP Trigger 2200 |
| Brake Lever (F/R) : DB LVLTL HI GLB FRT 20S /DB LVLTL HI SJ GLB RER 20S | Disc Rotor : ASSY DB ROTOR/BOLTS G2CS F:180/ R:160 |
| Crankset : FC DESCENDANT CARBON EAGLE TECHNOLOGY 24MM 175MM BLACK 30TOOTH | Bottom Bracket : BB PRESSFIT MTB PressFit (MTB: 89/91.5mm) |
| Cassette Sprocket : CS XG 1299 EAGLE 10-50T 12s GOLD | Chain : CN XX1 EAGLE GOLD 116LINK POWERLOCK 12SPEED 50PIECES |
| Wheels : X-Neo / WH-XX5.0a(650b)BK Freehub for SRAM XX1, Mountain Wheelset, 650b", TL-21 650b Rim, F/R: 32 Holes, XB-XX4.3 Hub/RED, Pillar PSR2015 Spokes, Skewer: QR-XX6.0 (Red), 1742g / per set (Front + Rear), • Rim: Black • Hub: Red • Nipple: Red • Spoke: Black | Tire : 27.5 X2.00 M324 170TPI, FOLDING. SILKWORM (360g) |
| Quick Release : QR-XX2.1 12mm*OLD/142mm *P1.5 AL7075 360Degree Lever US:13/21415 TAIWAN:100214698 79g Lever Color/BLACK |
